Filtre harmonique actif de type armoire 690V
Geya est un fabricant de filtre harmonique actif de type 690V de type armoire en Chine. Comprend le contrôle numérique, la conception modulaire et compense jusqu'au 50e harmonique, correctement des déséquilibres. Idéal pour les systèmes d'alimentation à moyenne tension, l'industrie lourde et les applications marines. Remplissez notre formulaire maintenant pour recevoir un devis rapide pour vos besoins d'achat!

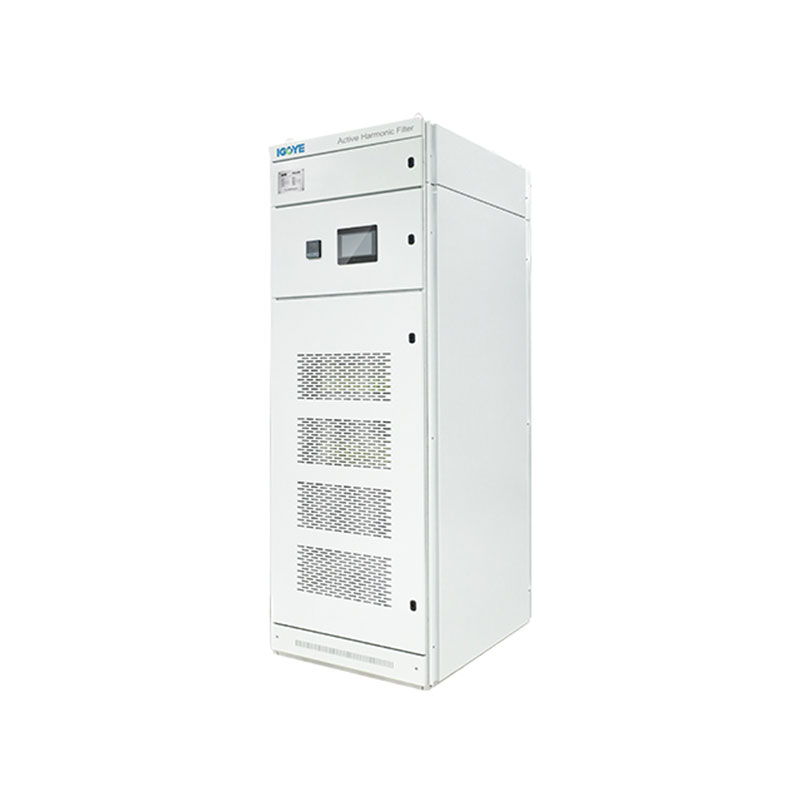

The 690V Cabinet-Type Active Harmonic Filter (APF) offers a robust solution for harmonic mitigation and power quality enhancement in 690V three-phase three-wire and four-wire electrical systems. This APF utilises advanced DSP+CPLD digital control and a three-level topology for precise harmonic current compensation up to the 50th harmonic, simultaneously correcting three-phase imbalances. The modular design supports scalable capacity by enabling parallel connection of multiple units. Housed in a durable cabinet with independent air ducts, the 690V Cabinet-Type Active Harmonic Filter ensures reliable performance and simplified maintenance. With available current ratings up to 300A and kvar capacities up to 300, this APF delivers effective power quality improvement for 690V systems.
Model description:
| GY | AHF | 0.69 | 100A | / | 4L | C |
| Enterprise code | Active Harmonic Filter |
Voltage level 0.69:690V±20% |
Rated Capacity（kvar）100A |
3L:Three-phase three-wire 4L:Three-phase four-wire |
C:Cabinet |
Features:
● Use DSP+CPLD all digital control core, three-level topology technology, advanced harmonic detection algorithm and PWM control strategy to achieve accurate compensation of harmonic current.

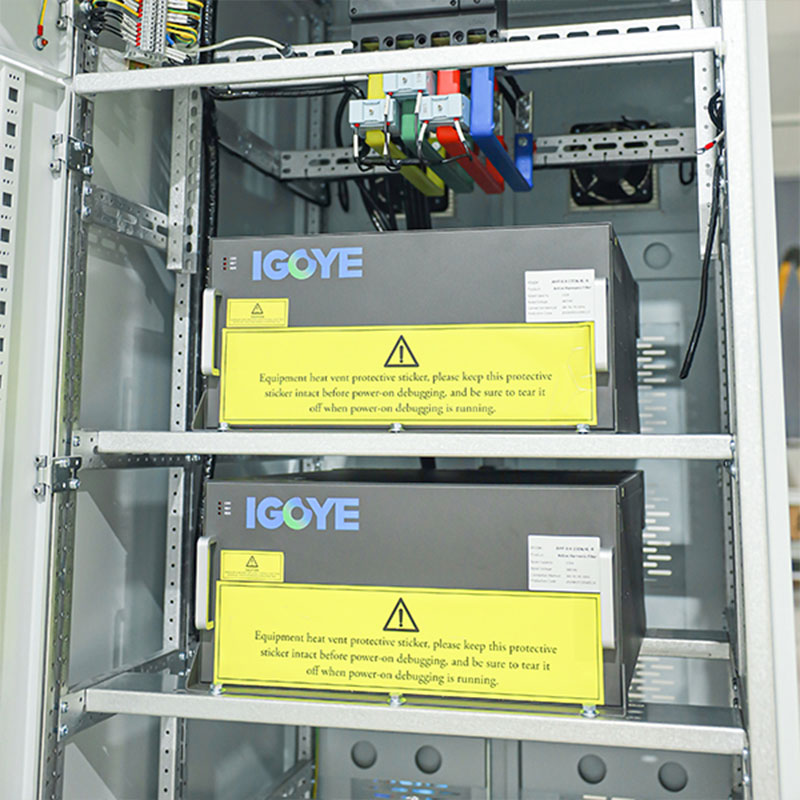

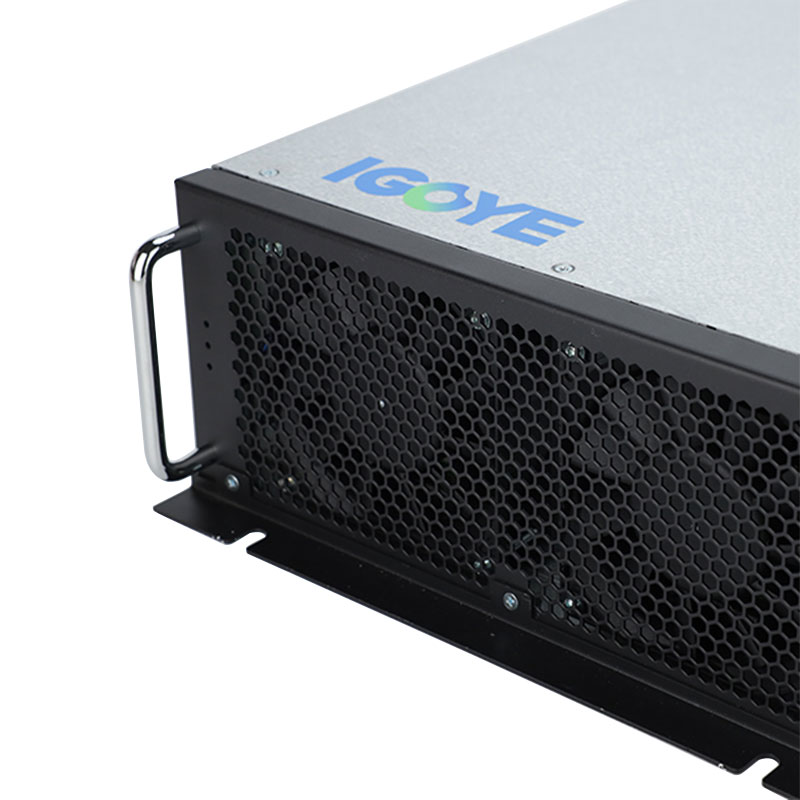

● Adopt modular design, which facilitates parallel connection of multiple modules, takes up little space and is easy to maintain.

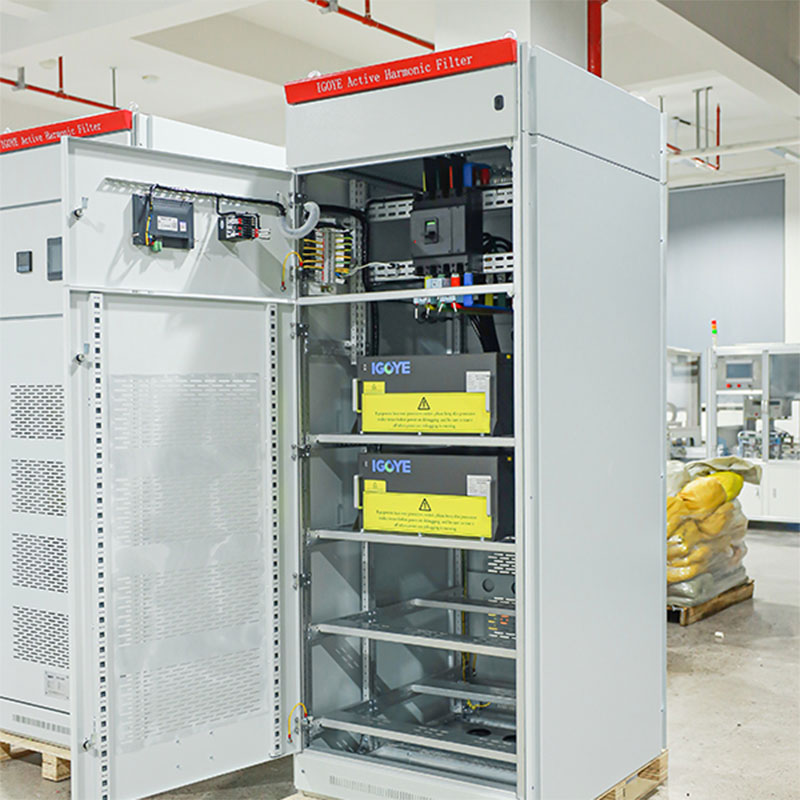

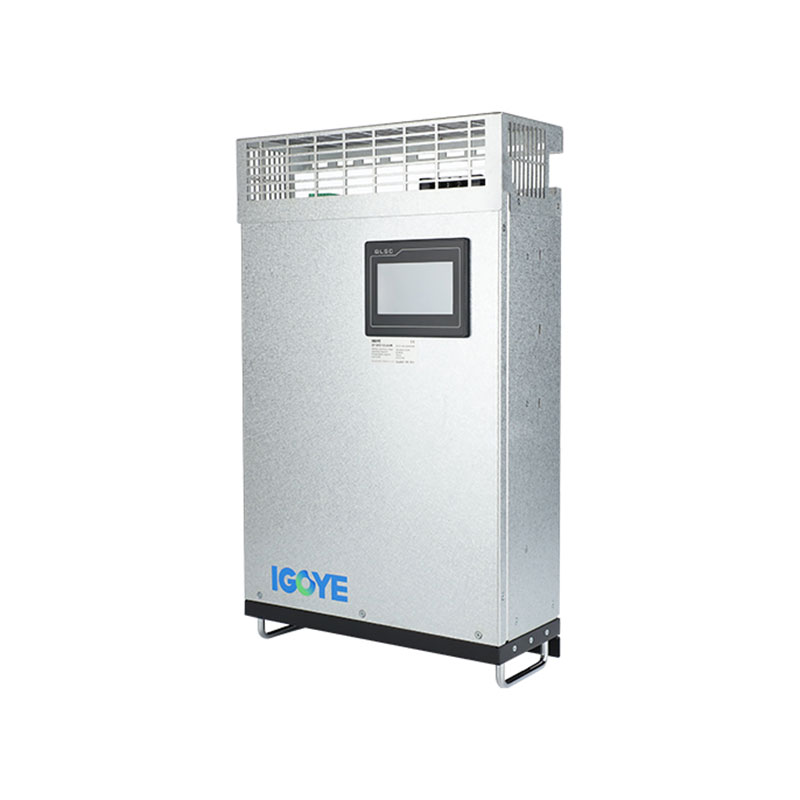

● The structural design of independent air ducts and independent warehouses ensures the stable operation of the equipment.
● It can filter harmonics in a wide range of harmonics, from 2 to 50 harmonics, and solve the problem of three-phase unbalance at the same time.
● The harmonic filtering rate is high. If the capacity allows, the harmonic current filtering rate can be as high as 95%. Set 100% current limiting output to ensure long-term stable operation of the equipment.
Applications:
690V Cabinet-Type Active Harmonic Filters are ideal for improving power quality in medium-voltage industrial settings:
● Medium-Voltage Power Systems: Stabilising power distribution in 690V networks, reducing harmonic distortion and improving system efficiency.
● Heavy Industrial Environments: Ensuring reliable operation of sensitive equipment in industries with significant harmonic loads, such as mining, oil and gas, and petrochemicals.
● Medium-Voltage Motor Drives: Minimising harmonic currents generated by large motor drives, reducing voltage distortion and improving motor performance.
● Marine and Offshore Platforms: Providing stable and reliable power quality in harsh environments where 690V systems are common.
690V Cabinet-Type Active Harmonic Filters provide a high-performance solution for optimising power quality in demanding 690V applications.
Technical Parameters:
| 220V series | 380V series | 500V series | 690V series | ||
| Altitude | < 2000m, above 2000m, derate according to GB/T3859.2 | ||||
| Ambient temperature | -20～+50℃ | ||||
| Relative humidity | ≤90%, no condensation on the surface when the monthly minimum temperature is 25℃ | ||||
| Pollution level | Level III below | ||||
| Operating Voltage | AC220V±20% | AC380V±20% | AC500V±20% | AC690V±20% | |
| Working frequency | 50Hz±5% | ||||
| Compensation current | 25A | 25/50/75/100 /150A | 100A | 100A | |
| Grid structure | L/N | 3P3W/3P4W | 3P3W/3P4W | 3P3W/3P4W | |
|
Number of units connected in parallel |
Ulimited | ||||
| Overall machine efficiency | ≥97% | ||||
| Grid structure | 32kHz | 16kHz | 12.8kHz | 12.8kHz | |
| Compensation range | 2～50times, single compensation rate is adjustable | ||||
| Function selection | Reactive power | Reactive power, reactive power + asymmetry | |||
|
Reactive power compensation rate |
≥95% | >92% | |||
|
Neutral filtering capability |
Neutral line filtering capability is 3 times that of phase filtering capability | ||||
| Full response time | ＜10ms | ＜40ms | ＜40ms | ＜40ms | |
| Noise | ≤60dB | ≤60dB | ≤65dB | ≤65dB | |
| Control method | 2-way RS485 interface (supports GPRS/WIFI) | ||||
| Protection | Overload, software/hardware overcurrent, grid overvoltage and undervoltage, power failure, overtemperature, frequency abnormality protection, etc. | Overload, software/hardware overcurrent, grid overvoltage and undervoltage, grid voltage imbalance, power failure, overtemperature, frequency abnormality, short circuit protection, etc. | |||
| Installation method | Rack/wall-mounted | Rack | |||
| Incoming line | Back incoming（rack type）、 upper incoming（wall-mounted） | Back incoming line | |||
| Protection level | IP20 | ||||
Model& Specification:
| Cabinet device model | ||||
|---|---|---|---|---|
| Model Number | Compensation capacity (kvar) | System voltage (V) | Dimensions (D*W*H) | Cooling method |
| GY APF-0.4-100A/4L-C | 100 | 380±20% | 800*1000*2200mm | Forced air cooling |
| GY APF-0.4-150A/4L-C | 150 | 380±20% | 800*1000*2200mm | |
| GY APF-0.4-200A/4L-C | 200 | 380±20% | 800*1000*2200mm | |
| GY APF-0.4-250A/4L-C | 250 | 380±20% | 800*1000*2200mm | |
| GY APF-0.4-300A/4L-C | 300 | 380±20% | 800*1000*2200mm | |
| GY APF-0.4-400A/4L-C | 400 | 380±20% | 800*1000*2200mm | |
| GY APF-0.5-300A/4L-C | 300 | 500±20% | 800*1000*2200mm | |
| GY APF-0.69-300A/4L-C | 300 | 690±20% | 800*1000*2200mm | |
